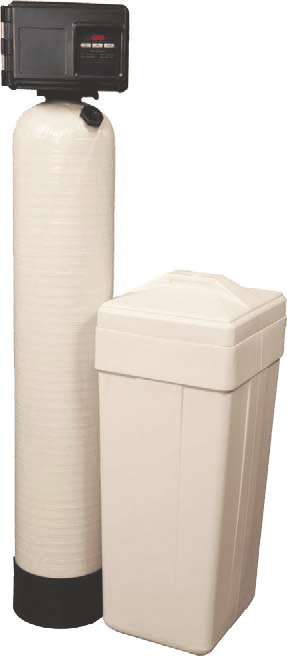

How the 2510 Hi-Flow System Softens Water:
Hard water passes through the media tank that contains resin beads coated with sodium ions. The calcium and magnesium ions are exchanged for sodium (or potassium) ions, thus soften-ing the water. When the beads have trapped the hardness and need to be regenerated, the Hi-Flow’s control valve charges them with the brine from the brine tank.
As regeneration occurs, calcium and magnesium (hardness) ions are freed from the beads, replaced with sodium or potassium ions; and the system is ready to soften water again.
• Fully adjustable cycles
• Certified flow rates to 19 gpm
• Operating pressure to 125 psi
• Operating temperatures to 110ºF
• Metered (DIR) or timed regeneration
• Single piston operation
• Non-corrosive, hi-tech material construction
All Charger water softeners may be ordered with optional salt grid which virtually prevents salt bridging.
Save water and up to 40% in salt usage by adding meter-controlled regeneration to your unit.
